GVL30AT – High-Temperature Liquid Level Detection

CAMLogic is proud to introduce the GVL30AT, the high-temperature version of our reliable GVL30, designed to ensure precise and dependable liquid level detection in extreme thermal environments.

Accurate liquid level monitoring becomes more challenging in high-temperature processes—unless you're using CAMLogic’s GVL30AT. Designed for top performance in tanks, pipelines, and vessels exposed to high heat, the GVL30AT ensures safe and precise detection of water, oils, chemicals, and viscous liquids. It's the ideal solution when thermal resistance and accuracy are essential.

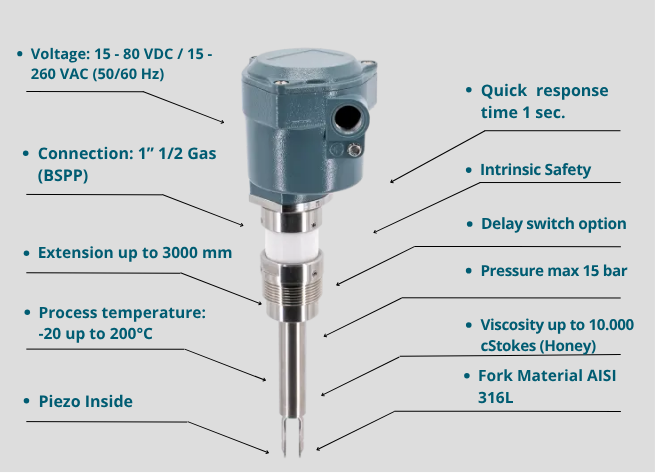

Key Technical Features:

• Process Connection: Available in threaded or flanged versions to suit different installations
• Extension: Customizable up to 3000 mm to fit various tank and container sizes
• Fork Material: Made of 316L stainless steel, resistant to corrosion, pressure, and high temperatures
• Temperature Range: Designed to operate from -20°C up to +200°C
• Output: DPDT (double pole double throw), ensures stable signal for process automation
• Power Supply: Broad compatibility from 15 - 80 VDC / 15 - 260 VAC (50/60 Hz) for easy integration
• Dust and Water Protection: IP65-rated housing resists splashes, dust, and washdowns even under thermal stress, minimizing failure risks

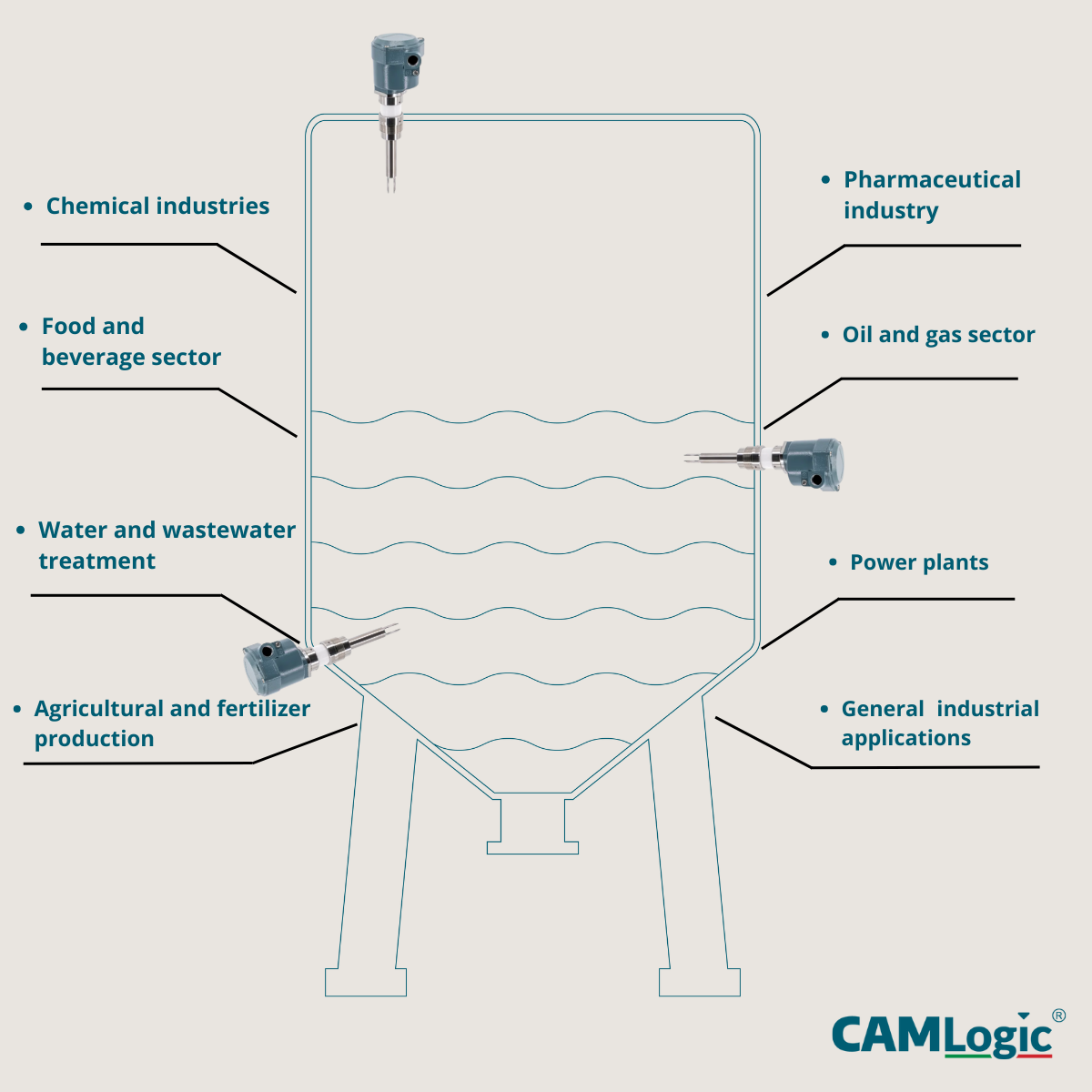

Ideal Applications for GVL30AT:

Why Choose CAMLogic’s GVL30AT?

• Built for Heat – Handles high-temperature liquid processes up to 200°C with precision and safety
• Accurate Across All Liquids – Reliable detection even under extreme thermal conditions
• Affordable Reliability – High-performance thermal sensor at a competitive price, offering great operational value
• Easy Installation and Universal Compatibility – Plug-and-play integration with broad power support
• Fast Availability – Optimized production and logistics for quick delivery
• Long Service Life – Durable materials designed to minimize wear and extend lifespan
• No Mechanical Wear – No moving parts = fewer failures, lower maintenance costs
• No Calibration Needed – Ready to use, no manual adjustments, for fast installation
• Optimized for Tough Environments – Works well with foam, turbulence, pressure, and high heat

“At CAMLogic, we understand that demanding industries need more than standard solutions—they require reliable, heat-resistant sensors capable of handling the most critical applications. That’s why the GVL30AT was designed to deliver performance, flexibility, and safety in high-temperature conditions..”

Ready for high-temperature liquid processes? Choose GVL30AT and elevate your measurement standards with CAMLogic!
